Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Nama Produk: | 1ton 2ton 3.2ton 5ton 8ton 10ton tali kawat listrik hoist | Kapasitas: | 1 T - 50 T |
---|---|---|---|
Reeving tali: | 2/1 atau 4/1 reeving | Peredam: | Penggerak Kecepatan Turun Planetary |
Tipe: | Tipe tetap dan troli | Kecepatan: | Kecepatan ganda |
Cahaya Tinggi: | 8t Electric Wire Rope Hoist,Pelabuhan Electric Wire Rope Hoist,12m Lifting Electric Wire Rope Hoist |

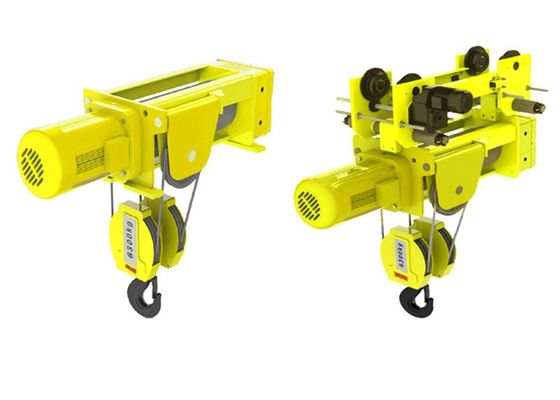

1ton 2ton 3.2ton 5ton 8ton 10ton tali kawat listrik hoist
perkenalan produk
Jenis wire rope hoist ini memiliki desain terbaru dengan tampilan kuadrat, konfigurasi termodulasi, beban pengenal unitized yang baik.Kombinasi perubahan mode dasar sangat nyaman dan beraneka ragam.Metode komposisi penggerak khusus sangat stasioner yang menghemat poros transmisi panjang yang biasa.Peredam menggunakan penggerak kecepatan turun panet yang memiliki efisiensi tinggi, yawp rendah yang tahan lama.Motor roda pemecah lancip rotor kolom unik dengan yawp rendah, cakram andal.Dengan kemajuan teknologi tali pemandu dari luar negeri, unit sangat andal dan aman.Pembatas putaran presisi tinggi dan mekanik super komponen listrik kontrol kualitas tinggi dengan kerusakan rendah.Produk ini memenuhi standar internasional terkini.
Kerekan listrik banyak digunakan di pabrik, tambang, pelabuhan, gudang, area penyimpanan kargo dan toko, penting dalam meningkatkan efisiensi kerja dan memperbaiki kondisi kerja.
Keunggulan Kompetitif
1. Jalur pengait yang sangat menguntungkan.
2. Desain perlindungan anti tergelincir dan lepas landas.
3. Memanfaatkan ruang kepala secara optimal.
4. Dimensi pendekatan yang sangat baik berkat desain yang ringkas.
5. Bagian utama mengadopsi bahan berkualitas tinggi untuk memastikan daya tahan.
6. Spesifikasi dan tanda khusus dapat dibuat sesuai dengan kebutuhan pelanggan.
Pertanyaan sebelum membuat kutipan
Semakin banyak informasi yang Anda berikan, solusi akurat yang dapat kami persiapkan untuk Anda!
1-Kapasitas?
2-Mengangkat tinggi?
3-apa itu bahan pengangkat?Bagaimana dengan lingkungan kerja?
4- Catu daya dan tegangan kontrol?
Kapasitas | Mengangkat Tinggi | Kecepatan Angkat | Daya Angkat | Kecepatan Bepergian | Daya Bepergian | Kelompok kerja | Perjalanan | H | C | Saya berseri-seri | Bobot |
(kg) | m | (m / mnt) | KW | m / menit | (kw) | FEM / ISO | Kelompok kerja | (mm) | (mm) | B (mm) | kg |
FEM / ISO | |||||||||||
2000 | 6 | 5 / 0.8 | 3,2 / 0,45 | 5/20 | 0.37 | 3M M6 | 2 juta M5 | 180 | 850 | 100-250 | 309 |
9 | 5 / 0.8 | 3,2 / 0,45 | 5/20 | 0.37 | 3M M6 | 2 juta M5 | 180 | 850 | 100-250 | 330 | |
12 | 5 / 0.8 | 3,2 / 0,45 | 5/20 | 0.37 | 3M M6 | 2 juta M5 | 180 | 850 | 100-250 | 351 | |
15 | 5 / 0.8 | 3,2 / 0,45 | 5/20 | 0.37 | 3M M6 | 2 juta M5 | 180 | 850 | 100-250 | 372 | |
18 | 5 / 0.8 | 3,2 / 0,45 | 5/20 | 0.37 | 3M M6 | 2 juta M5 | 180 | 850 | 100-250 | 393 | |
3200 | 6 | 5 / 0.8 | 3,2 / 0,45 | 5/20 | 0.37 | 2 juta M5 | 2 juta M5 | 180 | 850 | 100-250 | 309 |
9 | 5 / 0.8 | 3,2 / 0,45 | 5/20 | 0.37 | 2 juta M5 | 2 juta M5 | 180 | 850 | 100-250 | 330 | |
12 | 5 / 0.8 | 3,2 / 0,45 | 5/20 | 0.37 | 2 juta M5 | 2 juta M5 | 180 | 850 | 100-250 | 351 | |
15 | 5 / 0.8 | 3,2 / 0,45 | 5/20 | 0.37 | 2 juta M5 | 2 juta M5 | 180 | 850 | 100-250 | 372 | |
18 | 5 / 0.8 | 3,2 / 0,45 | 5/20 | 0.37 | 2 juta M5 | 2 juta M5 | 180 | 850 | 100-250 | 393 | |
5.000 | 6 | 5 / 0.8 | 6.1 / 1 | 5/20 | 0,55 | 2 juta M5 | 2 juta M5 | 190 | 890 | 150-300 | 380 |
9 | 5 / 0.8 | 6.1 / 1 | 5/20 | 0,55 | 2 juta M5 | 2 juta M5 | 190 | 890 | 150-300 | 423 | |
12 | 5 / 0.8 | 6.1 / 1 | 5/20 | 0,55 | 2 juta M5 | 2 juta M5 | 190 | 890 | 150-300 | 466 | |
15 | 5 / 0.8 | 6.1 / 1 | 5/20 | 0,55 | 2 juta M5 | 2 juta M5 | 190 | 890 | 150-300 | 510 | |
18 | 5 / 0.8 | 6.1 / 1 | 5/20 | 0,55 | 2 juta M5 | 2 juta M5 | 190 | 890 | 150-300 | 552 | |
6300 | 6 | 5 / 0.8 | 6.1 / 1 | 5/20 | 0,55 | 1Am M4 | 2 juta M5 | 190 | 890 | 150-300 | 380 |
9 | 5 / 0.8 | 6.1 / 1 | 5/20 | 0,55 | 1Am M4 | 2 juta M5 | 190 | 890 | 150-300 | 420 | |
12 | 5 / 0.8 | 6.1 / 1 | 5/20 | 0,55 | 1Am M4 | 2 juta M5 | 190 | 890 | 200-350 | 465 | |
15 | 5 / 0.8 | 6.1 / 1 | 5/20 | 0,55 | 1Am M4 | 2 juta M5 | 260 | 596 | 200-350 | 510 | |
18 | 5 / 0.8 | 6.1 / 1 | 5/20 | 0,55 | 1Am M4 | 2 juta M5 | 260 | 596 | 200-350 | 552 | |
8000 | 6 | 5 / 0.8 | 9.5 / 1.5 | 5/20 | 0,75 | 3M M6 | 2 juta M5 | 200 | 1150 | 150-300 | 794 |
9 | 5 / 0.8 | 9.5 / 1.5 | 5/20 | 0,75 | 3M M6 | 2 juta M5 | 200 | 1150 | 150-300 | 826 | |
12 | 5 / 0.8 | 9.5 / 1.5 | 5/20 | 0,75 | 3M M6 | 2 juta M5 | 200 | 1150 | 150-300 | 870 | |
15 | 5 / 0.8 | 9.5 / 1.5 | 5/20 | 0,75 | 3M M6 | 2 juta M5 | 200 | 1150 | 150-300 | 914 | |
18 | 5 / 0.8 | 9.5 / 1.5 | 5/20 | 0,75 | 3M M6 | 2 juta M5 | 200 | 1150 | 150-300 | 958 | |
10000 | 6 | 5 / 0.8 | 9.5 / 1.5 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 794 |
9 | 5 / 0.8 | 9.5 / 1.5 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 826 | |
12 | 5 / 0.8 | 9.5 / 1.5 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 870 | |
15 | 5 / 0.8 | 9.5 / 1.5 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 914 | |
18 | 5 / 0.8 | 9.5 / 1.5 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 958 | |
12500 | 6 | 4 / 0,6 | 12,5 / 2 | 5/20 | 0,75 | 1Am M4 | 2 juta M5 | 200 | 1150 | 150-300 | 794 |
9 | 4 / 0,6 | 12,5 / 2 | 5/20 | 0,75 | 1Am M4 | 2 juta M5 | 200 | 1150 | 150-300 | 826 | |
12 | 4 / 0,6 | 12,5 / 2 | 5/20 | 0,75 | 1Am M4 | 2 juta M5 | 200 | 1150 | 150-300 | 870 | |
15 | 4 / 0,6 | 12,5 / 2 | 5/20 | 0,75 | 1Am M4 | 2 juta M5 | 200 | 1150 | 150-300 | 914 | |
18 | 4 / 0,6 | 12,5 / 2 | 5/20 | 0,75 | 1Am M4 | 2 juta M5 | 200 | 1150 | 150-300 | 958 | |
16000 | 6 | 4 / 0,6 | 16 / 2.6 | 5/20 | 0,75x2 | 2 juta M5 | 2 juta M5 | 250 | 1150 | 250-350 | 1120 |
9 | 4 / 0,6 | 16 / 2.6 | 5/20 | 0,75x2 | 2 juta M5 | 2 juta M5 | 250 | 1150 | 250-350 | 1180 | |
12 | 4 / 0,6 | 16 / 2.6 | 5/20 | 0,75x2 | 2 juta M5 | 2 juta M5 | 250 | 1150 | 250-350 | 1240 | |
15 | 4 / 0,6 | 16 / 2.6 | 5/20 | 0,75x2 | 2 juta M5 | 2 juta M5 | 250 | 1150 | 250-350 | 1300 | |
18 | 4 / 0,6 | 16 / 2.6 | 5/20 | 0,75x2 | 2 juta M5 | 2 juta M5 | 250 | 1150 | 250-350 | 1450 | |
20000 | 6 | 4 / 0,6 | 16 / 2.6 | 5/20 | 0,75x2 | 1Am M4 | 2 juta M5 | 250 | 1150 | 250-350 | 1120 |
9 | 4 / 0,6 | 16 / 2.6 | 5/20 | 0,75x2 | 1Am M4 | 2 juta M5 | 250 | 1150 | 250-350 | 1180 | |
12 | 4 / 0,6 | 16 / 2.6 | 5/20 | 0,75x2 | 1Am M4 | 2 juta M5 | 250 | 1150 | 250-350 | 1240 | |
15 | 4 / 0,6 | 16 / 2.6 | 5/20 | 0,75x2 | 1Am M4 | 2 juta M5 | 250 | 1150 | 250-350 | 1300 | |
18 | 4 / 0,6 | 16 / 2.6 | 5/20 | 0,75x2 | 1Am M4 | 2 juta M5 | 250 | 1150 | 250-350 | 1450 | |
8000 | 20 | 8 / 1.3 | 16 / 2.6 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 997 |
24 | 8 / 1.3 | 16 / 2.6 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 1036 | |
28 | 8 / 1.3 | 16 / 2.6 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 1075 | |
32 | 8 / 1.3 | 16 / 2.6 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 1114 | |
36 | 8 / 1.3 | 16 / 2.6 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 1153 | |
10000 | 20 | 8 / 1.3 | 16 / 2.6 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 997 |
24 | 8 / 1.3 | 16 / 2.6 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 1036 | |
28 | 8 / 1.3 | 16 / 2.6 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 1075 | |
32 | 8 / 1.3 | 16 / 2.6 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 1114 | |
36 | 8 / 1.3 | 16 / 2.6 | 5/20 | 0,75 | 2 juta M5 | 2 juta M5 | 200 | 1150 | 150-300 | 1153 | |
12500 | 20 | 6.3 / 1 | 16 / 2.6 | 5/20 | 0,75 | 1Am M4 | 2 juta M5 | 200 | 1150 | 150-300 | 997 |
24 | 6.3 / 1 | 16 / 2.6 | 5/20 | 0,75 | 1Am M4 | 2 juta M5 | 200 | 1150 | 150-300 | 1036 | |
28 | 6.3 / 1 | 16 / 2.6 | 5/20 | 0,75 | 1Am M4 | 2 juta M5 | 200 | 1150 | 150-300 | 1075 | |
32 | 6.3 / 1 | 16 / 2.6 | 5/20 | 0,75 | 1Am M4 | 2 juta M5 | 200 | 1150 | 150-300 | 1114 | |
36 | 6.3 / 1 | 16 / 2.6 | 5/20 | 0,75 | 1Am M4 | 2 juta M5 | 200 | 1150 | 150-300 | 1153 |
Produk menunjukkan:
