Detail produk:
Syarat-syarat pembayaran & pengiriman:
|
Nama Produk: | 1t 2t 3t 4t 5t 6t 10t Tunggal Ganda Wheel Block Snatch Pulley Block | Aplikasi: | Bahan transmisi dan pengangkatan |
---|---|---|---|
Kapasitas: | 0,5 ton hingga 10 ton | Tipe: | kait atau mata |
Cutomised: | OEM | Model: | DY |
Cahaya Tinggi: | klem mengangkat horisontal,klem pelat horisontal |

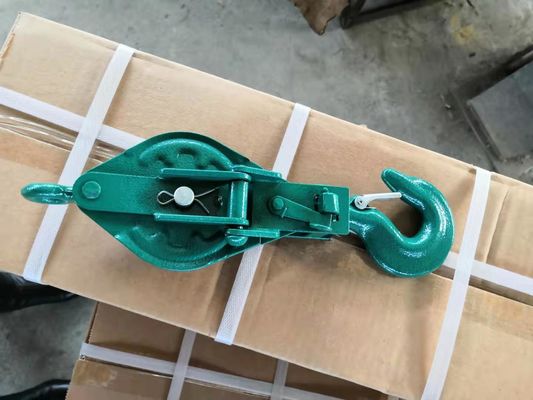

1t 2t 3t 4t 5t 6t 10t Tunggal Ganda Wheel Block Snatch Pulley Block
Karakteristik
1. Struktur sederhana, portabel.
2. Bahan: Baja
3. Sertifikasi: CE
4. Kapasitas: 0,5 ton - 10 ton
5. Dapat diproduksi sesuai dengan kebutuhan spesifik.
6. Can be called pulley block, pulley, snatch block. 6. Dapat disebut pulley block, pulley, snatch block With eye and hook two types. Dengan mata dan kait dua jenis.
7. Aplikasi: derek seri mengangkat bagian.
Aplikasi produk
SnatchePulley is an important lifting tool which is convenient and simple in structure, easy to install and operate. SnatchePulley adalah alat pengangkat penting yang strukturnya nyaman dan sederhana, mudah dipasang dan dioperasikan. It can be with single wheel or double wheels. Bisa dengan roda tunggal atau roda ganda. Max capacity 10t. Kapasitas maksimum 10t. Can assure you the competitive price on basis of good quality. Dapat meyakinkan Anda harga yang kompetitif berdasarkan kualitas yang baik.
Spesifikasi Produk
Roda tunggal
Tipe | SWL (t) | Sheave Dia. (Mm) | Dimensi (mm) | Untuk kawat dia. (Mm) | NW (kg) | ||||
Menghubungkan | Mata | Hook (A1) | Eye (A2) | B | C | ||||
75DYx1S | 75DYx1SO | 0,5 | 75 | 268 | 227 | 87 | 50 | 8 | 1.5 |
100DYx1S | 100DYx1SO | 1.0 | 100 | 311.5 | 284.5 | 112 | 55.5 | 10 | 2.6 |
125DYx1S | 125DYx1SO | 1.5 | 125 | 370 | 344 | 140 | 63.5 | 13 | 4.8 |
150DYx1S | 150DYx1SO | 2.0 | 150 | 442.5 | 417 | 168 | 101 | 16 | 7.4 |
180DYx1S | 180DYx1SO | 3.0 | 180 | 498 | 478 | 204 | 107 | 19 | 11.9 |
200DYx1S | 200DYx1SO | 4.0 | 200 | 590.5 | 556 | 226 | 128 | 22 | 20.4 |
250DYx1S | 250DYx1SO | 5.0 | 250 | 706.5 | 651 | 276 | 147 | 25 | 33 |
300DYx1S | 300DYx1SO | 6.0 | 300 | 795 | 775 | 330 | 162 | 26 | 48 |
350DYx1S | 350DYx1SO | 10 | 350 | 934 | 898 | 395 | 178 | 28 | 66 |
Roda ganda
Tipe | SWL (t) | Sheave Dia. (Mm) | Dimensi (mm) | Untuk kawat dia. (Mm) | NW (kg) | ||||
Menghubungkan | Mata | Hook (A1) | Eye (A2) | B | C | ||||
75DYx2S | 75DYx2SO | 0,5 | 75 | 268 | 227 | 87 | 77 | 8 | 2.8 |
100DYx2S | 100DYx2SO | 1.0 | 100 | 311.5 | 284.5 | 112 | 88 | 10 | 4.3 |
125DYx2S | 125DYx2SO | 1.5 | 125 | 370 | 344 | 140 | 100 | 13 | 7.8 |
150DYx2S | 150DYx2SO | 2.0 | 150 | 442.5 | 417 | 168 | 146 | 16 | 12.2 |
180DYx2S | 180DYx2SO | 3.0 | 180 | 498 | 478 | 204 | 157 | 19 | 18.5 |
200DYx2S | 200DYx2SO | 4.0 | 200 | 590.5 | 556 | 226 | 188 | 22 | 31 |
250DYx2S | 250DYx2SO | 5.0 | 250 | 706.5 | 651 | 276 | 220 | 25 | 49.8 |
300DYx2S | 300DYx2SO | 6.0 | 300 | 795 | 775 | 330 | 238 | 26 | 72 |
350DYx2S | 350DYx2SO | 10 | 350 | 934 | 898 | 395 | 260 | 28 | 102 |
